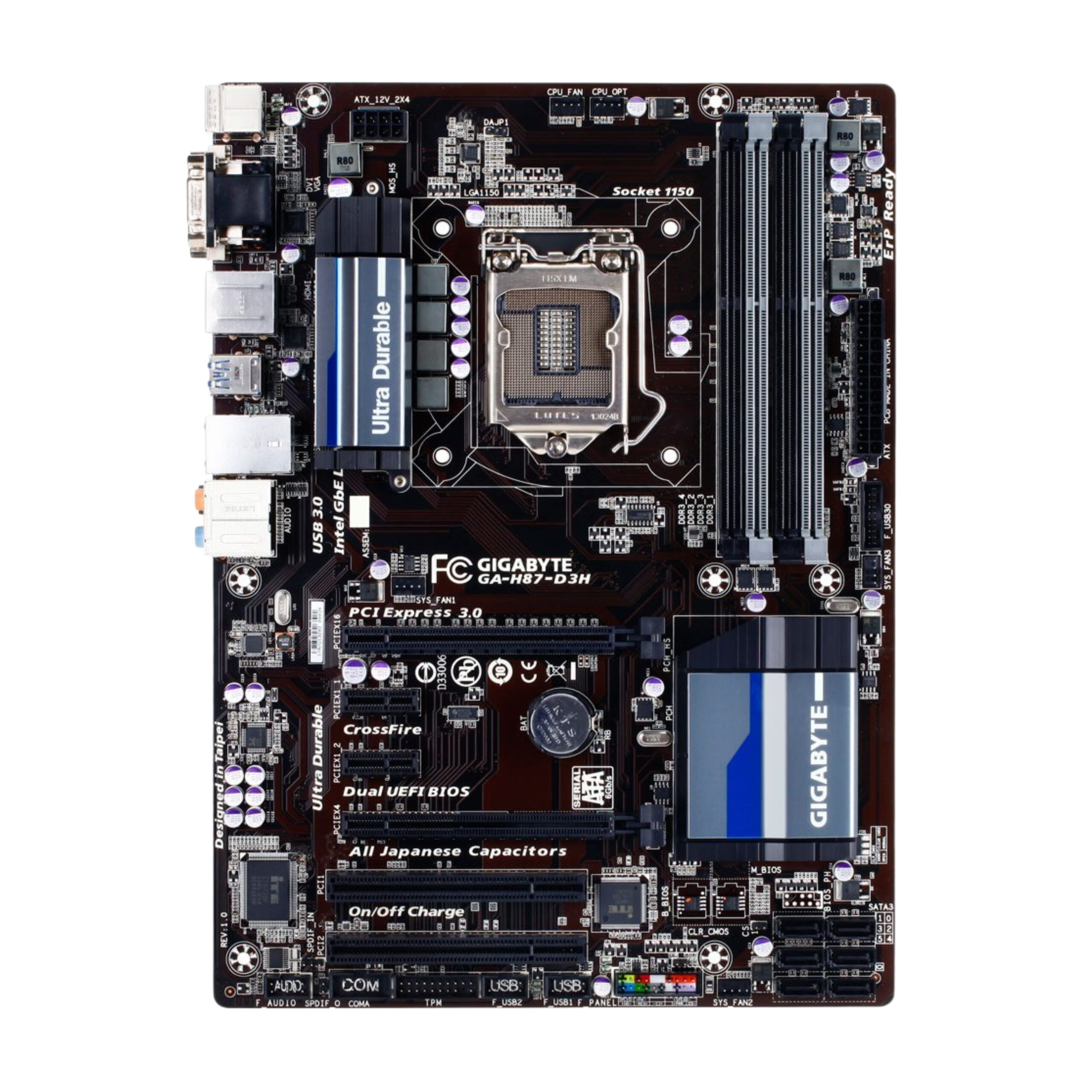

Gigabyte GA-H87-D3H 4th Gen Motherboard – Used

Gigabyte GA-H87-D3H 4th Gen Motherboard – Used

Core Specifications:

• Processor (CPU): LGA1150 socket supporting 4th Generation Intel Core i3/i5/i7, Pentium, and Celeron processors
• Chipset: Intel H87 Express Chipset
• Form Factor: ATX Form Factor; 30.5cm x 22.5cm
• Memory (RAM): 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory, dual channel, support for DDR3 1600/1333 MHz, and XMP modules
• Graphics: AMD CrossFire technology for multi-GPU setups
• Expansion Slots: 1 x PCI Express x16 slot (running at x16 – PCIe 3.0), 1 x PCI Express x16 slot (running at x4 – PCIe 2.0), 2 x PCI Express x1 slots, 3 x PCI slots

Storage and Connectivity:

• Storage: 6xSATA 6Gb/s connectors (Intel H87 chipset) supporting RAID 0,1,5,10
• Networking: Intel GbE LAN chip (10/100/1000 Mbit) with high ESD protection
• Audio: Realtek ALC892 codec, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support

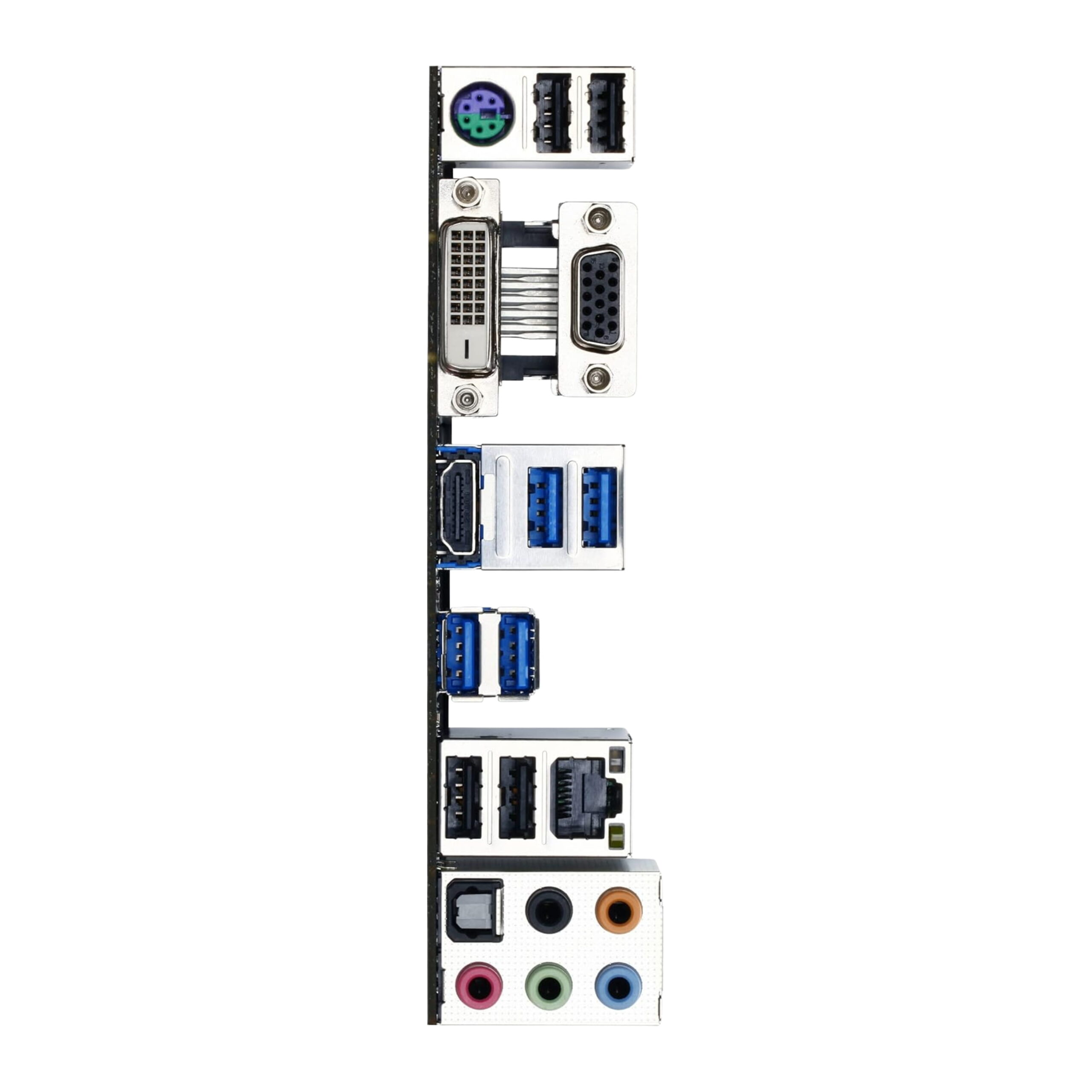

Rear I/O panel:

• 1 x PS/2 keyboard mouse Combo port
• 1 x HDMI port (v1.4a, supports up to @ 24 Hz)
• 1 x DVI-D port (supports up to @ 60 Hz)
• 1 x D-Sub (VGA) port (supports up to @ 60 Hz)
• 4 x USB 3.0 Ports
• 4 x USB 2.0 Ports
• 1 x LAN RJ-45 (Gigabit Ethernet) port
• 1 x Optical S/PDIF Out connector
• 5 x Audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Key Features:

• Ultra Durable 5 Plus: IR Digital CPU Power Design, 15µ gold plated CPU socket, and high-efficiency design
• UEFI DualBIOS: Allows for safe and easy BIOS navigation and recovery
• On/Off Charge: Quick charge capability for USB devices
